Bass Build – Alembic Style – Nordstrand – ACG Preamp – ETS Bridge – Carvin Neck

Bass Build. Alembic style design, Nordstrand Big Splits Pickups, ACG EQ-02 Preamp, ETS Bridge

South Austin Guitar Repair

I haven’t built anything from near scratch in a long time. At least 4 years? I’ve missed it. It’s one of the things I’m able to do that defines me. Granted, when I was last building things, I was still at Chico state and had more free time on my hands. But nonetheless, this project turned out to be my best work to date in creativity, style, aesthetic and patience. I’ve already gigged with it a few times, and yes, it sounds and plays every bit as good as it looks.

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



I’ve always had a love for Alembic basses. Who doesn’t? They pioneered the artistry in boutique instruments. But who has $5,000 lying around that would best be put into purchasing an instrument? I think I’d rather pay off my car loan before I can justify something like that. So begins my journey to create my next instrument.

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



I never build the same thing twice and am always trying different things. However, I do stick with what I like when I find it. I’ve built 2 basses using the Carvin neck-through blanks. They’re great. Though since the last time I built with them, they weren’t offering the ebony fingerboards as the default. It’s now plain ol’ rosewood. Oh well. Di minimis on this project!

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



When shopping around for woods, the best and most beautiful in my opinion is buckeye. When I came across this top, it was love at first sight. I’ve also never worked with purpleheart before but always had some interest in it. I mean, it’s purple wood. That’s hilarious and gorgeous at the same time. I needed a wood for the back though. I was toying with cocobolo, ziricote and a few others. After some searching around, I came across OregonWildwood.com. They had a pretty cool collection of woods cut for guitar making. But they had one wood which ended up being EXACTLY what I was looking for. Beautiful grain, variance of colors, and the tree is comes from produces my favorite nut. Pistachio! I had no idea these trees had this kind of grain, but when I saw it, I knew I had to do it.

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



The bridge was another journey in its own. I wanted to stick with the Alembic approach and have a bridge + tailpiece combo but wasn’t having much luck finding anything available for single purchase. Eventually, after enough googling, I came across a really cool site out of Germany. BassParts.de They sell a brand “ETS” which machines parts to your specs. They have sleek and stunning designs and seem to be used by a lot of manufacturers throughout Europe. The only bummer is, from the time I ordered to the time the bridge finally came took about 3 months. That put the project to a bit of a halt since I wasn’t able to measure certain things to cut without it.

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



Electronics are my favorite part of bass building. I love to have different voices available in my basses. If I have a humbucker, I never hesitate to coil tap or series/parallel. I always use on-board preamps and of course, my favorite on-board distortion circuit made by Artec. I’ve heard a lot of great things about Nordstrand pickups and decided to give them a whirl. I ended up using the Big Splits. I was intrigued of the idea of rotating the pole pieces, and that the pickups were wound into 2 groups of bobbins versus 1 single. And certainly enough, they ended up being the right choice. Articulate, bright and beautiful 🙂

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



For preamps, in the past, I’ve used the Aguilar OBP series. They’re great. Awesome range to boost frequencies, different combinations of pots. No complaints. But this time, in the spirit of new, I tried using a filter-style preamp made by ACG. And I can now say, I will never go back. Alembic pioneered the filter preamp. Basically, rather than just boosting/cutting frequencies, you can select the range of frequencies you want to manipulate and boost/cut them. Doesn’t sound like much of a difference, but believe me, it makes ALL the difference. I generally like bright tone when I play. This preamp enables me to dial in the best sound for my attack, and lets the frequencies ring pristine.

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



I had a bit of an unconventional approach when putting the body woods together. I lived the idea of a neck-thru design, but plain ol’ maple isn’t exciting to look at. Additionally, the way this neck blank was cut, it was meant for wood to be glued to the top and bottom. I had to use a table saw to cut off the 3/8″ to accommodate the buckeye top and maintain a reasonable height for the bridge. I also had to factor in the height of the purpleheart and shave off another 3/8″ on the bottom side of the blank for the pistachio wood. For that, I used a jointer (surface planer).

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



Again, unconventionally, I first glued the neck blank to the pistachio wood. Next, I glued the purpleheart wings to each side. I meticulously aligned and refined the positions as they were being glued to ensure they didn’t shift while the glue dried. It ended up working out very well! Also, you notice I cut out the electronics cavity from the pistachio with a scroll saw? Pretty sweet!

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



After the pistachio and purpleheart were glued together, I needed to lighten the load. I do this by routing out some wood before gluing the top on. As long as you leave a solid piece of wood down the center of the body for the pickups and bridge to mount, you won’t lose any tone or sustain. But you can’t get too crazy with routing out wood. There’s many things to keep in mind. Buckeye burl is not a very strong wood. You can’t just route out a large area and hope for the best. All it takes is the bass to fall on a corner and you have a hole in the guitar top. You can’t route too deep, or you just might end up with a hole in the back of your guitar. My router crapped out on me half way through this step. The bit kept slipping down and I was afraid that it would go through the back of the bass. I ended up having to finish this out with a boring bit on my drill press. Not the prettiest to look at, but then again, it did the trick to keep the weight down and it’s not going to be seen after I glue on the top.

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



After top was glued on, I used a 2″ hole saw to cut out the initial “omega” shape. I taped a template of the body shape and used a router (new one) to even out the rough cuts made on the body wood with a band saw. Using a series of hand flees, I beveled the buckeye to blend into the purpleheart and add contrast to the look. I then routed out the pickup cavities. The bass is starting to take shape!

Next up is my least favorite of the process… finish work. Although, rather than just applying finish right away, I applied about 5 coats of sanding sealer. I love this stuff! It’s clear, it evens out the wood, dries quickly and really make the grain pop! Then it was onto 5 coats of the actual finish. Wet sanding every 2 coats during that whole process.

Finally came time to wire up the electronics. it was a bit of a mess in the electronics cavity and pretty tightly fit. I had to do a bit of troubleshooting to figure out some grousing issues. Ended up having to copper shield the cavity and solder some ground wires to it. In the end, it all worked out.

Bass build in Austin TX Bass build in Austin TX Bass build in Austin TX



This bass, is my pride and joy. Named “Big Gino” after my grandpa whom was a woodworker for many years. He helped me on many builds before this and is an all around stand up gentleman. I’ve already gigged with this a few times and can’t be happier. I will say, no one in Austin is playing anything like this bass and for that fact alone, it’s pretty neat.

Read more

Telecaster Re-Fret, Bone Nut and Neck Shim

Telecaster Re-Fret, Bone Nut and Neck Shim

South Austin Guitar Repair

This project brought new life to an old friend. The Telecaster that was pieced together by my customer. It was loved and played for many years to the point where the frets had divots all up and down the neck. Normally, frets have enough material on them to get at least one or two fret levelings before replacing them is needed, but at the customer’s request, they needed to go.

With the guitar pieced together, the height of the neck at the heel didn’t match the neck pocket. The action was still quite high even with the bridge lowered all the way down. The customer actually placed 2 outdated credit cards as shims…

Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair


To remove the frets, I heat them one by one, with a soldering iron and working each out with a fret puller. It’s important to keep the frets warm so the teng pulls the least amount of wood grain with them.

Once the frets are out, I measure the radius of the fingerboard so I know what to bend the new fretwire into. This Tele has a particularly round radius of 7.25″ After cleaning off the new frets, I run the wire through the fret bender. Usually takes a few times of trial and error to get the correct curvature. After that, I prep the existing slots in the neck with a saw which matches the new fret wire’s teng. Not much is needed.

Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair


Next, I pre-cut the bent fret-wire and begin pressing the frets into the fingerboard with my handy arbor press. This tool is amazing. Traditionally, a neck is re-fret with a hammer, which is loud… really loud and takes at least 5 hits per fret to sit properly. Multiply that by 21 or more frets and you have angry neighbors.

Sometimes, I like to use glue when pressing in the frets. I chose not to this time and let the teng of the fret work its magic. After all the frets are pressed in, the next step is to file the edges flush with the fingerboard. As you can tell the picture with the sleeping cat, I was working late into the night… or maybe early afternoon, or… I don’t know. Cats sleep 2/3 of the day apparently.

Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair


Next up, I take a small, 3-corner file and round out the fret ends. If you’ve ever played a guitar off a factory belt that skipped this step, you’ll probably remember it for the rest of your life because those cuts are nasty! I mask off the fingerboard with tape and file each fret end, both sides

After that, the new frets need to be leveled. Although they look to be at the same height at a glance, there are always high spots. and check each string position with my handy fret rocker and make a note of which spots that will need leveling. Then, I get to work with my leveling file. I check the marked areas with my fret rocker as I go. Once everything is at an even height, I take a crowning file and re-shape each fret. This same procedure can be done with the 3-corner file, but for the sake of time, this is my method. Then, I sand out any remaining scratches with wet/dry sandpaper and finish them off with some rubbing compound. I remove the tape and apply a bit of lemon oil to condition the fingerboard.

Lastly, I discarded the credit cards and shape a piece of 1/8″ maple to the neck pocket to aid the neck height. I cut the new bone nut, (which I’ve explained my process in a few other blog entries), strung the guitar up and VIOLIA! This guitar’s got a brand new start in life.

Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair
Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair Telecaster Re-fret - South Austin Guitar Repair


Does your guitar need some a re-fret leveling or re-fret? Call Andrew with South Austin Guitar Repair 512-590-1225 for fast friendly fret work.

Read more

Jazz Bass Build

Custom Jazz Bass Build

South Austin Guitar Repair

Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair

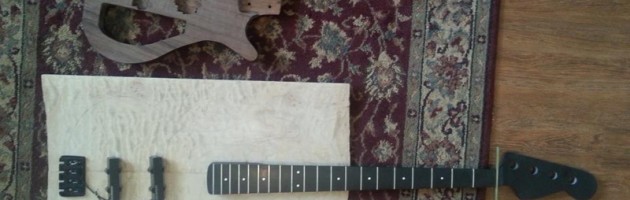

This project was special, it was a personal project, resurrected from one of the first basses I ever built! This particular project had changed appearances a few times through it’s life. Originally, it was a Jazz bass, then I experimented with a series of different pickup combinations, all of which required routing to the body. Eventually, this bass was set aside and scraped for parts. After using some of the spalted maple for a repair on another build, I sanded the top wood of the bass entirely and set it aside as a future project.

Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair


Finally, I had an objective. Build a bass with a sharp attack, broad tonal range, sleek look, light-weighted and elegant aesthetic. Having never built a bass with a graphite neck, I knew that was a necessary component. I had this bookmatched AAAA quilted maple top sitting around for years. Originally, I was planning to build a guitar with it, but things got in the way and the farthest I ever got was gluing the two pieces together until it sat for years. Something funny about working with this this maple top: I don’t currently own a band saw, which is how I typically would cut out wood when building. SO when working with this piece of maple, I cut it by hand, scoring the wood with a straight-edge ruler and a razor. When the top wood was close to shape, I glued it onto the walnut body and rasped the rest of it to fit the shape. Lastly, I beveled the top with a hand router.

Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair


For electronics, I was on a mission for a versatile, sharp-attacking growling bass tone. I hadn’t had a jazz bass for a long time. I am always experimenting with different pickup combinations and manufacturers to see what is best, but you can’t the simplicity of the almighty jazz bass. Gritty, tight, balanced; there’s good reason why they are the winning combination for musicians and manufacturers. I am a firm supporter of the Aguliar OBP preamps. I have them installed on each of my 6 basses. This one was an OBP-2, which offers a bass/treble boost and cut. I wired those with a stacked pot to save space. I prefer my pickups to be wired through a 3-way mini toggle switch into to a single volume. I’m all or nothing when it comes to pickup volume and combinations. Now, comes is my ace in the hole. The middle knob on this bass is actually a 5-way rotary switch. It’s a distortion circuit that moves from true bypass and though 4 switchable distortion models that get progressively grittier as you go up. Personally, I prefer the 3rd position for my stylings. Just enough break-up for each note to pierce through the mix while still maintaining clarity and the role of the low end of my band.

Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair
Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair Jazz Bass Build - South Austin Guitar Repair


For all your guitar repair needs, contact Andrew of South Austin Guitar Repair – 512-590-1225

Read more

Taylor Guitar Restoration – South Austin Guitar Repair

Taylor Guitar Repair

South Austin Guitar Repair

Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair
Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair
Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair Austin Taylor Guitar Repair



This poor Taylor had a run-in with a misstep of the wrong foot! The customer had borrowed this guitar from a friend and mistakenly used it for a slipper, or boot, or… I dunno. But it done got broke!

The customer was nervous this guitar might not be fixable in its condition. The breaks were complex and many. When it all comes down, (most) guitars are wood. Everything can be fixed one way or another.

Clamping wood from the outside is no issue, but when a crack is 8″ or longer and going through a surface, is difficult to keep level when re-gluing. I needed to create pressure from the inside-out for the guitar’s top to clamp evenly on the exterior.

For this repair, I went Macguyver and made a new set of clamps from a turnbuckle, threaded furniture foot and… a another, non-threaded furniture foot! The threaded furniture foot provided the necessary torque to apply pressure outward when unscrewed, inside the guitar body. Any additional clamp on the outside can apply pressure inward. The cracks are then equalized between the two sides so not to set unevenly.

Some of the cracks where odd, broken and uneven with the grain where they rest. Overlapping from where they should rest. In some of those occurrences, it’s easier to break the piece off and re-glue than to attempt to force it back.

After all the pieces were glued in place, the back, the guitar back needed to be evened out. Fortunately, Taylor uses light lacquer on their guitars, so it only took a few hours of sanding to get through the finish and level the wood. Once that was even, A few coats of clear lacquer was applied and the back was good as new.

Read more

A REAL Guitar Ressurection – 1960’s Stella Acoustic Repair

1960’s Stella Acoustic Repair

South Austin Guitar Repair



Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar
Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar

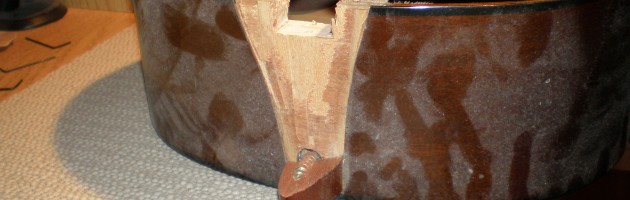

Here is an old guitar that underwent a total makeover. Once again, the was the unfortunate result of parents allowing their young children to “play” their guitars. I honestly don’t know how these kids are able to deconstruct this guitar the way they did, but this is absolutely the most broken guitar I have ever come across…

The top and back were almost completely separated from from the sides, only being held together by the neck, which was broken at the dovetail joint, loose from the top and fingerboard splitting apart from the rest of the neck. The inside of the guitar had melted crayons scattered about. There were no tuners or string nut and bridge saddle. The kerfing on the sides has been split in various locations… basically, this guitar was as they call in the auto-industry, “totaled.”

But one can’t put a price on sentimental value and it was decided to bring this guitar back to life. I think for this occasion, I’ll let the pictures do the talking 😉



Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar
Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar
Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar Austin Guitar Reconstruction - 1960's Stella Acoustic Guitar

Read more

Dean Acoustic Guitar – Partial Re-Fret

Dean Acoustic Guitar – Partial Re-Fret

South Austin Guitar Repair

Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225
Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225
Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225 Austin guitar fret work and repair done fast and affordably. South Austin Guitar Repair. Call (512) 590-1225


Wow, it’s almost been a month since I’ve had time to blog about Austin guitar repairs. Despite the summer rush for repairs being over, the rush itself seems to continue on. I guess it’s a good problem to have?

So, down to the nitty gritty.

After many years of love and play time, the owner of this guitar made an honest attempt to re-fret the first four frets on his own. Unfortunately for his efforts, murphy’s law is especially true when doing any kind of work on your frets. So after his replaced frets completely fret themselves out, he brought it in to my shop for a fix.

The main issue, was the frets were not a good replacement size (too short in crown height) and I couldn’t simply mill them down to match the others. In this case, it was faster and easier to replace them entirely.

First the frets needed to be pulled. The customer didn’t use any glue, so they were only being held in by the teng of the fret. Once they were out, I cleaned out the inside of the fret slots for any debris.

Next, I use a gauge to determine what radius the fingerboard has been manufactured. This guitar was 10″. To translate, imagine a 10″ diameter circle; the top of that circle is the shape of this guitar’s fingerboard, which the frets are placed.

Using my handy fret bender, I fed the fret wire through and cut sections to place on the neck. Because this fingerboard had binding on its sides, I also needed to undercut the ten on the ends so it could sit flush on the fingerboard.

After applying a bit of glue to the bottom of the frets, I hammered them into their slots using a brass-tipped hammer. Once they were in, I clamped them down with a radius block that matched the fingerboard’s profile.

After a night of the glue curing, I removed the clamp and beveled the edges of the frets for any sharp corners. Using that same radius block and a bit of 150 and 220 sand paper, I leveled any imperfections in the new frets and it’s older neighboring ones. Then, using some wet/dry sandpaper, I gave them each a “once over” to smooth them further.

Next, I polished each one with a bit of rubbing compound to buff out any additional scratches. After removing the masking tape from the fingerboard, I apply a few dabs of lemon oil to coat and enrich the rosewood fingerboard

Once that’s dried, I string out the guitar and it’s back in action! Fret work, to say the least, is a series of steps. But when performed correctly, bring a tired, worn guitar, back to life.

Read more

Guild 12-String Acoustic Bridge Re-glue

Guild 12-String Acoustic Bridge Re-glue



Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair. Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair
Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair Bridge re-glue on a 1970's Guild 12-String acoustic guitar by South Austin Guitar Repair



Well, it’s been a busy, busy month. And not coincidentally, a hot, Texas month. The kind that makes old glue weakened and acoustic bridges start to pull apart from the surface of a guitar. I’ve had about 5 guitars brought to me in the last 30 days with this very problem. If you’ve been perusing this guitar repair blog, you may have seen an older entry, of a Framus Nylon String guitar, whose bridge popped off entirely. This guitar, didn’t quite have that luxury, and required some extra TLC to get the job done.

After removing the strings, I heat up a metal putty knife by holding it against an iron. I carefully slide the hot putty knife into an open area of the pulled bridge. Once I hit a section of the bridge that is still glued down, I give it a little push to force itself in, and wait a few seconds for the heated glue to settle and I pull the knife back out, and heat it again on the iron. I do this until one end of the bridge has been lifted enough to wedge another plastic putty knife under. This helps any glue that’s been heated not find its way back down to the guitar top.

Once the bridge has popped off, the old glue from the underside of the bridge needs to be removed entirely so we’re working with bare wood. After a little sanding on the bridge’s underside, the next thing to do is clean the surface of the guitar. I totally dropped the ball and forgot to take a picture of this step. But to paint a picture for you, I place the bridge back on the guitar top, mask off the area around the bridge with blue painter’s tape and use a combination of a sanding block and flat chisel (for scraping) to get any bits of old glue or lacquer.

Now, we’re ready to glue this bridge down! Because the bridge has a tendency to shift when clamps are applied, I manufactured a device to keep the bridge from shifting while gluing. I use a strip of wood with two threaded rods epoxied to accommodate the two farthest and most opposite holes which the guitar’s bridge pins secure. After the glue is applied and the clamping begins, there’s a mad rush with a series of wet and dry rags to wipe away any excess of glue that is pushed out from the under side. After a few minutes of tightening clamps and wiping excess glue, the guitar can sit over night and allow the glue to cure.

The next day, clamps are removed, the strings are strung and this guitar is back in action!

Read more

Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup

Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup

Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup
Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup Ukulele – Saddle Route, Bone Nut and Saddle Carve and Setup


Two guys walk into my shop with a little Ukulele. One built this little masterpiece in his high school woodshed class and the other was inheriting it. While the wood working was precise and well thought out, the project remained unfinished for nearly 10 years! It was decided to finish what was started and get this little demon, screamin’.

When building an instrument from scratch, there are always issues of hindsight. It’s literally imposible, even when standing on the shoulders of giants, to foresee and perfect every detail when building a prototype. For starters, there was no slot cut for this Ukulele’s saddle.

With a starter route from my drill press and a few cuts from my my handy Dremel, the slot was deepened and ready for action.

Next, a thin piece of moose bone was cut and carved for the saddle and another for the nut. In a short while, they were carefully placed on the body and headstock and it was finally time to string this baby up!

One last “gotcha” occurred when stringing up the A string. The same size hole was drilled in the bridge for the knotted strings to rest against. This poor string was pulled through 3 separate times when tuning up and was quadruple-knotted before it finally stayed put.

Even though home made instruments come with a few follies, they’re simply the most inspiring and valued to their creators for exactly that reason.

Read more

Lotus “Pawn Shop” Les Paul – Setup

Lotus “Pawn Shop” Les Paul – Setup

Lotus "Pawn Shop" Les Paul Copy - Setup Lotus "Pawn Shop" Les Paul Copy - Setup Lotus "Pawn Shop" Les Paul Copy - Setup Lotus "Pawn Shop" Les Paul Copy - Setup
Lotus "Pawn Shop" Les Paul Copy - Setup Lotus "Pawn Shop" Les Paul Copy - Setup Lotus "Pawn Shop" Les Paul Copy - Setup .



I don’t usually blog about setups… they’re… well… there’s nothing all that interesting about them. It’s very important aspect of guitar maintenance, but there’s not a whole lot of magic that goes into the process. This guitar, however, made the cut. It was almost like something out of a movie. It was too bad to be true and yet, there it was.

The customer said she bought this from a pawn shop in her hometown of Burnet, Texas. It was purchased “as-is” and from the looks of it, whoever sold it to the pawn shop, had no idea what they were doing, and like the patron trying to make a quick buck, neither did the manager of the pawn shop.

The strings were fed through the bridge, some of them rested on the saddles, others were not so fortunate. The strings were string up backwards into each tuner. The pickups lost their soldering on their underside and were falling apart, the saddles of the tune-o-matic saddles were all screwed as far forward as possible (not measured and offset for actual intionation purposes)… Aye yey yey.

Well, with a set of new DR Pure Blues and a few turns of the screwdriver, this guitar cleaned up nicely and was back to the customer within the hour. So remember, even if it’s a good deal to you, pawn store guitars usually need a check up after purchasing.

Read more

Guild T100D Tuner Swap/Bone Nut Carve/Electronics Clean Up

Guild T100D Tuner Swap/Bone Nut Carve/Electronics Clean Up

Guild T100D Tuner Swap/Bone Nut Carve/Electronics Clean Up Guild T100D Tuner Swap/Bone Nut Carve/Electronics Clean Up Guild T100D Tuner Swap/Bone Nut Carve/Electronics Clean Up Guild T100D Tuner Swap/Bone Nut Carve/Electronics Clean Up
Guild T100D Tuner Swap/Bone Nut Carve/Electronics Clean Up Guild T100D Tuner Swap/Bone Nut Carve/Electronics Clean Up Guild T100D Tuner Swap/Bone Nut Carve/Electronics Clean Up


These are the projects I love to do. Upgrading old components, hot-rodding… whatever you want to call it, these are the ones I practically live for.

So, this guitar was purchased by it’s owner back in the 70’s and has remained solely in his possession since. While it was worked on a few times and the guitar was well cared for and thus, in great condition – with a few exceptions.

For starters the electronics were quite dusty and covered in crap. So much so, that the owner thought the switch needed replacing because it would short out every time he changed positions. After taking the electronics out (which on a hollow body like this, is not as fun as it sounds), it was clear to see the decades of dust that accumulated, causing the contacts on the pots to work intermittently. A quick spray over the components with some some contact cleaner and they were good as new.

This guitar’s owner also expressed an interest in upgrading the bridge and tuners. The current tuners would stick on certain strings, making the tuning process a pain. The bridge was nice enough, but the wooden saddle made the guitar play more as an acoustic and yielded brightness and sustain like a modern, metal guitar bridge.

After some research, we found a near-identical set of Shaller tuners and a floating tune-o-matic that could easily and quickly replace the older components.

I failed to take pictures of the process of the nut carving… but over the many years of use, this guitar’s plastic nut had worn itself down to the point of fretting out when the open G string was played. After an hour of sanding and filing some moose bone stock, the Guild had a new bone nut securely on it’s headstock and was the finishing touch to bringing this guitar a second life, which will last for decades to come.
